Home>>Products>>W463>>Wheels>>Mercedes G-Class Beadlock wheels by Hutchinson.

Mercedes G-Class Beadlock wheels by Hutchinson







OFFSET: distance from the mounting surface of the wheel to the true centerline of the rim.



  LUG BOLT PATTERN: diameter of an imaginary circle formed by the centers of the wheel lugs.

All Mercedes G-Class cars use 5X130mm bolt pattern (five bolt holes and they are 130mm apart)

  CENTERBORE relates to the center hole in the wheel that centers the wheel on the hub of the car. All Mercedes G-Class cars use 84.1mm centerbore.



  TORQUE: All alloy wheels should be installed using a torque wrench.

    All Light-Allow wheels torque:130Nm(96 lb-ft)

    All Steel wheels torque 180Nm (133 lb-ft)



Warning! when changing from steel wheels to alloy wheels you will need longer bolts!



Only use genuine Mercedes-Benz wheel bolts specified for your vehicle's rims!



Incorrect wheel bolts or improperly tightened wheel bolts can case the wheel to come off.

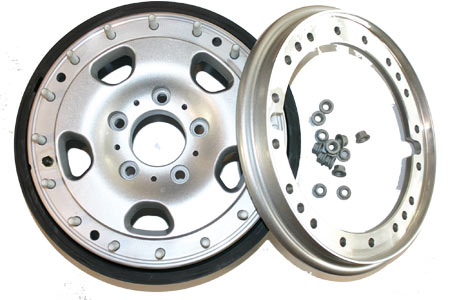

Mercedes G-Class new style military beadlock wheels with two inflator valves.

Wheel size 7.5JX16

Offset 37mm

Lug bolt pattern 5X130mm

Centerbore 84.1mm

Load rating3307 lb @65 psi

Wheel weight 35.6 lb (16.1 kg)

Torque 130Nm (96 lb-ft)

Tire pressure monitor system sensor installation kit is included.

Center cap NOT included.

Sold only as a set of 4 wheels.

Available in Silver or Satin Black.



Special order parts allow 4 weeks for delivery.

Will fit any G-Class car from 1990 to 2013 (300GE, G320, G350DT, G300DT G270CDI, G400CDI, G500) without any modifications if recommended tire size used.

NOT FOR G55K from year 2005 and G63AMG



Please call us 201-258-4778 or send us email at mercedes@fourbyfourclub.com to find current price and availability.
