Home>>Products>>W463>>Wheels>>Mercedes G-Class Light-Alloy Wheel ASHTAROTH

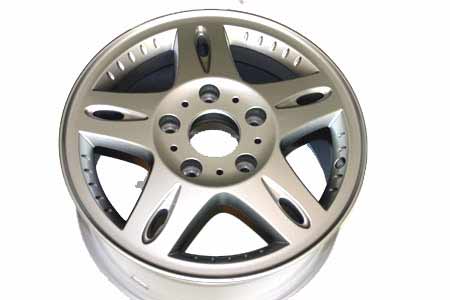

Mercedes G-Class Light-Alloy Wheel ASHTAROTH







OFFSET: distance from the mounting surface of the wheel to the true centerline of the rim.



  LUG BOLT PATTERN: diameter of an imaginary circle formed by the centers of the wheel lugs.

All Mercedes G-Class cars use 5X130mm bolt pattern (five bolt holes and they are 130mm apart)

  CENTERBORE relates to the center hole in the wheel that centers the wheel on the hub of the car. All Mercedes G-Class cars use 84.1mm centerbore.



  TORQUE: All alloy wheels should be installed using a torque wrench.

    All Light-Allow wheels torque:130Nm(96 lb-ft)

    All Steel wheels torque 180Nm (133 lb-ft)



Warning! when changing from steel wheels to alloy wheels you will need longer bolts!



Only use genuine Mercedes-Benz wheel bolts specified for your vehicle's rims!



Incorrect wheel bolts or improperly tightened wheel bolts can case the wheel to come off.



Original Mercedes light-alloy wheel "Ashtaroth" allows you to use 16" tires.

Wheel size 7.5JX16

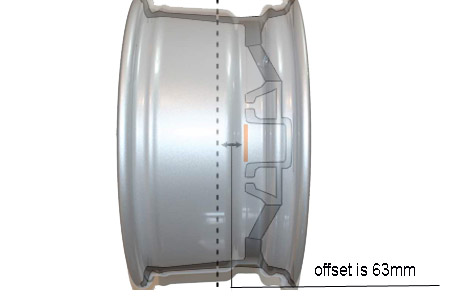

Offset 63mm

Lug bolt pattern 5X130mm

Centerbore 84.1mm

Torque 130Nm (96 lb-ft)

Recommended tire size 265/70R16

Suitable for tire pressure monitor system sensor installation.

Center cap NOT included.

Sold and ship individually.



Will fit any G-Class car from 1990 to 2010 (300GE, G320, G350DT, G300DT G270CDI, G400CDI, G500) without any modifications if recommended tire size used.

NOT FOR G55K from year 2005.



Please call us 201-258-4778 to find current price and availability.
